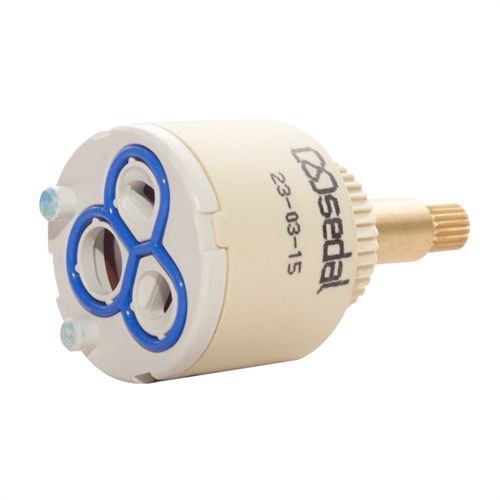

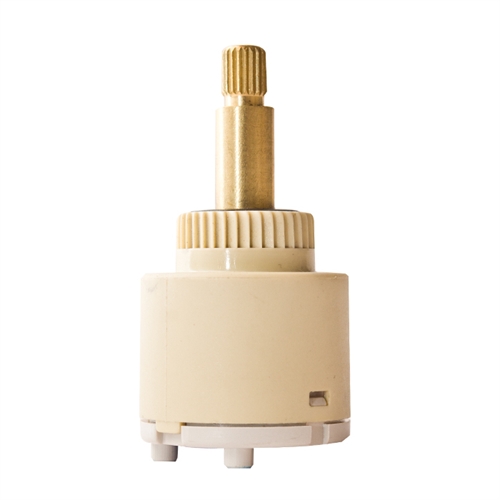

A two way diverter cartridge that diverts water to 2 outlets – Made by Sedal
- 35mm diameter body
- Max inlet temp 90 degrees C
- Flat bottom ‘closed type’ design
- 180° rotation to switch between outlets
- Made by Sedal of Spain
- For in wall taps and shower valves
Dimensions/Technical
- Diameter: 35mm
- Spline: 8mm x 20 teeth
- Distance between locating lugs: 18mm
- Overall height: 64.3mm (excluding lugs)
- Operating pressure range: 1-5 bar
