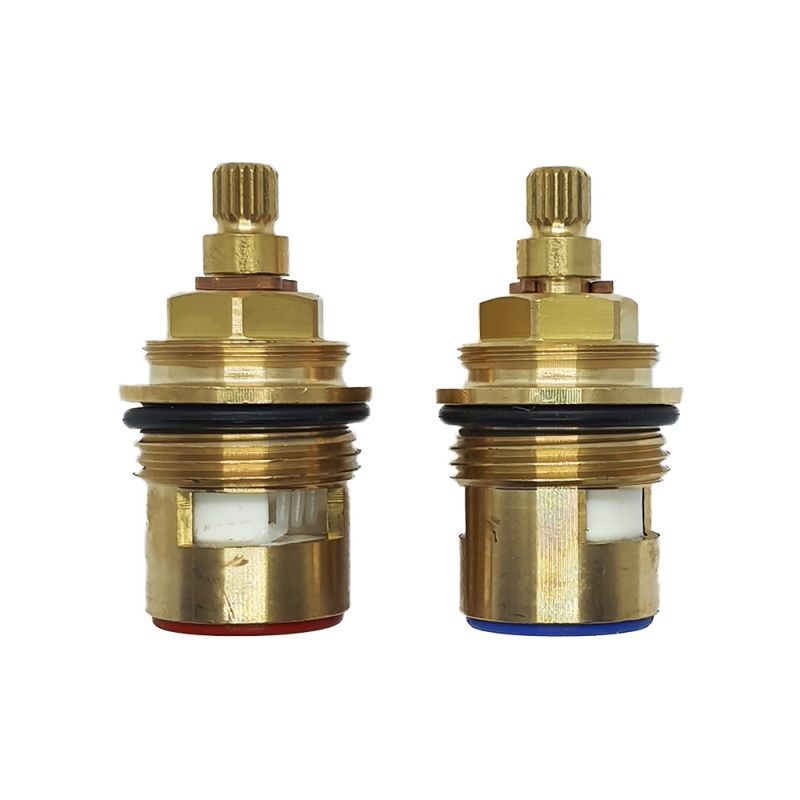

Replacement pair of 3/4″ quarter turn valves with 20 teeth on spline and 23.5mm diameter base. – 53mm height

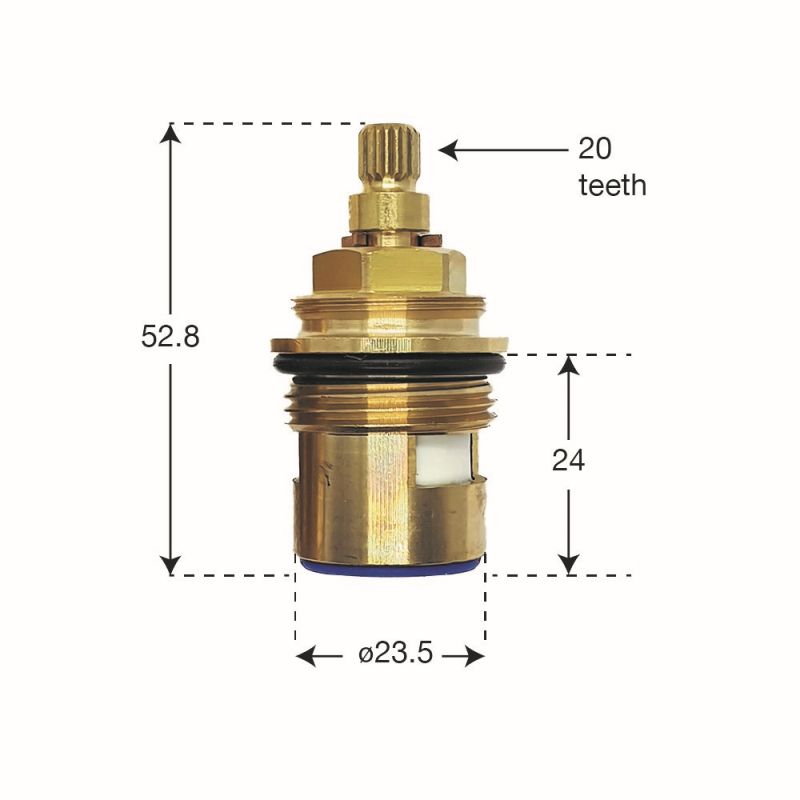

- 23.5mm diameter at the base
- 8mm nom. diameter spline with 20 teeth
- M24 upper thread
- 52.8mm from top to base
- M4 screw thread inside the spline
- Approx. 2mm shorter than standard valves
